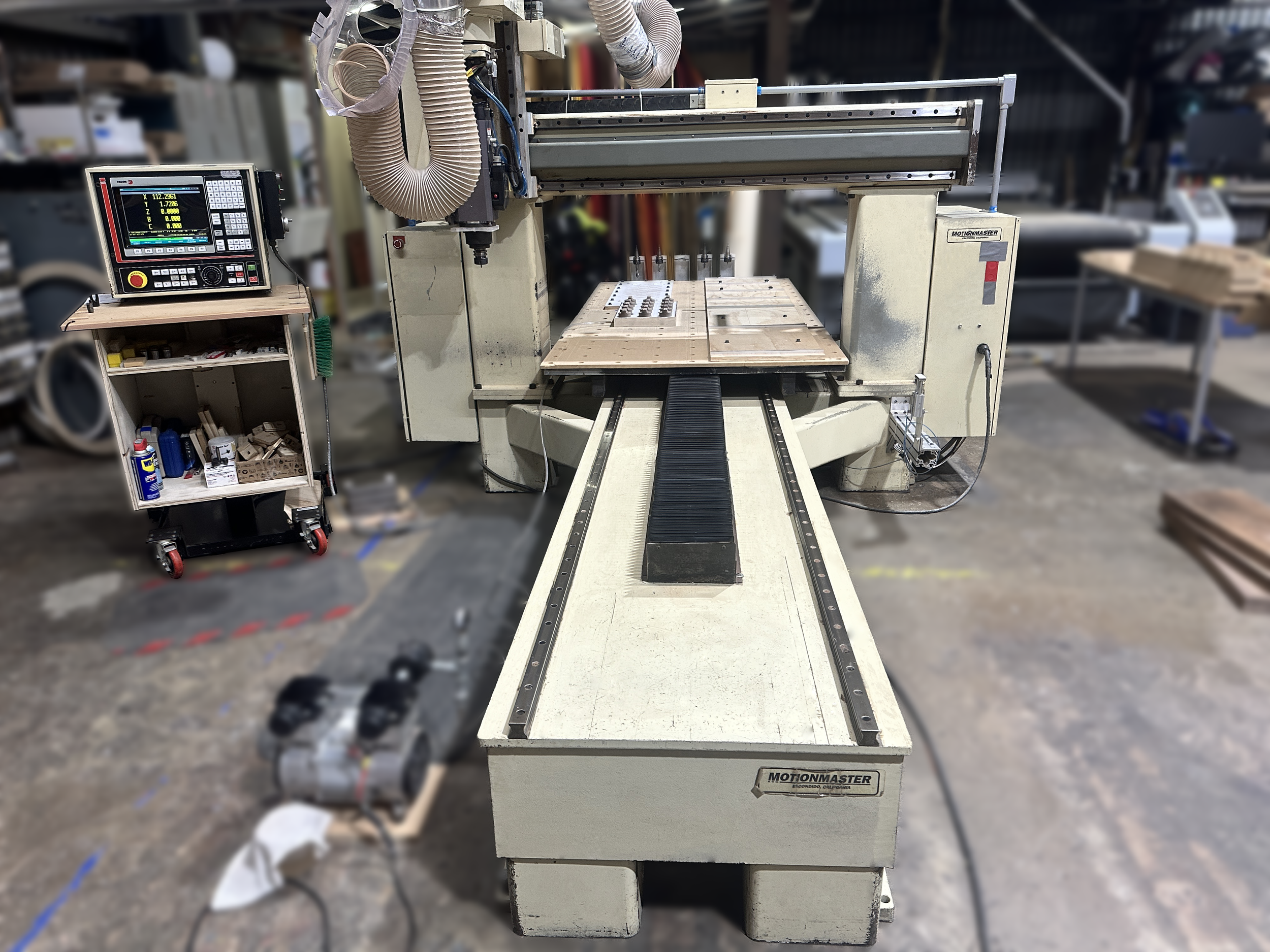

Refurbished MotionMaster 5-Axis CNC Router

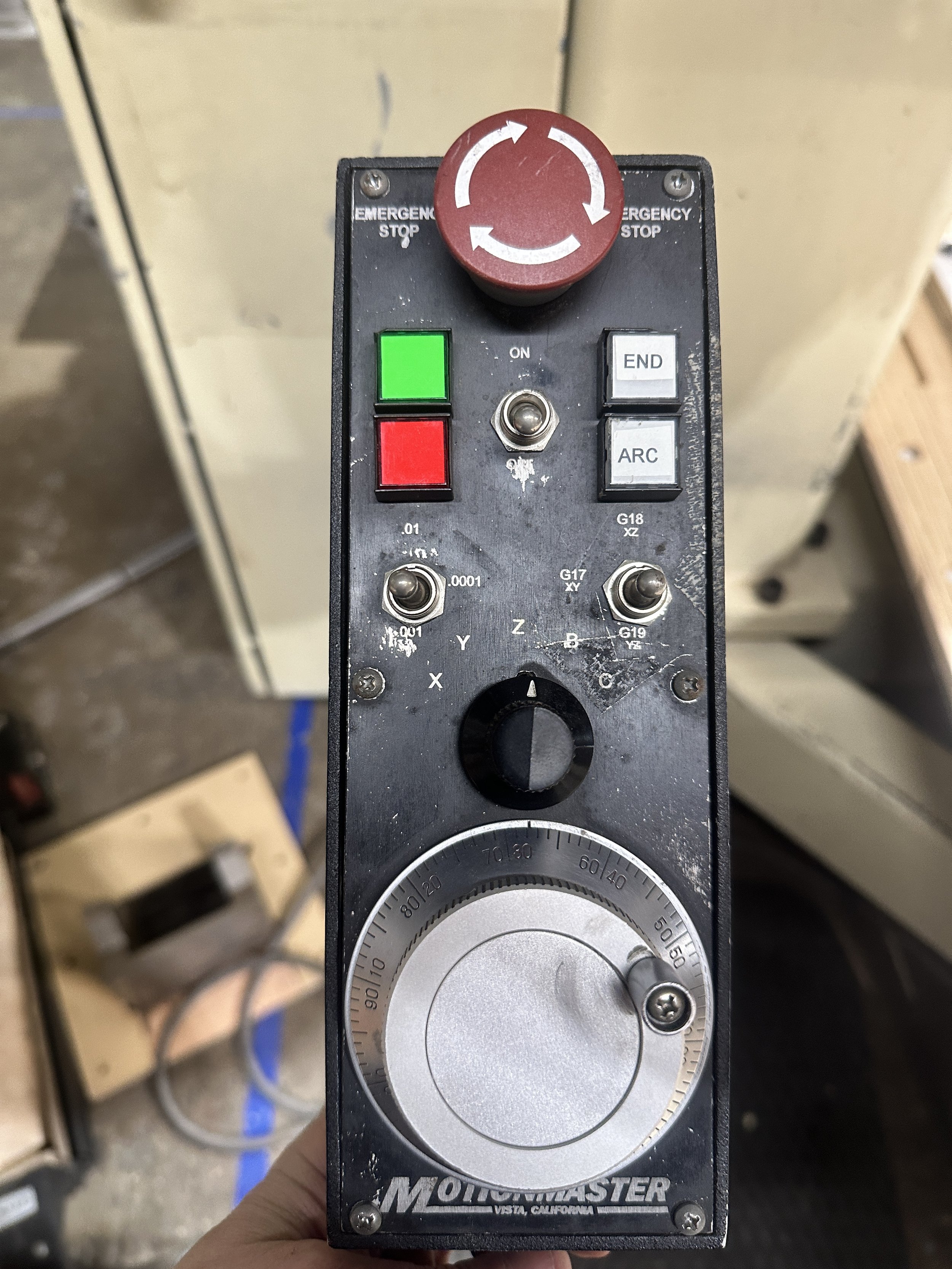

4’x8′ moving table, 24 in Z-height stroke, 10hp ATC spindle motor, Fagor 8055 CNC system (new as of 2021), upgraded geared head, remote hand controller, tool touch-off pad, and micro-misting system. Mechanically tight and well-maintained.
The machine at work, cutting features into walnut hardwood
Showing a 5-axis move with TCP turned on.
Showing an automatic tool change.
Table setup for vacuum hold-down system but not currently hooked up. Machine includes two 10 HP vacuum turbine pumps.
Machine requires a 120v 30 amp connection for the servos, and a 440v 20amp connection for the spindle (a 240v to 440v 15 kV transformer is included). Vacuum pumps are 220v.
Footprint is 16’ long by 8’ wide. Lower gantry makes for a stiffer machine that only needs 8’ of vertical clear height.

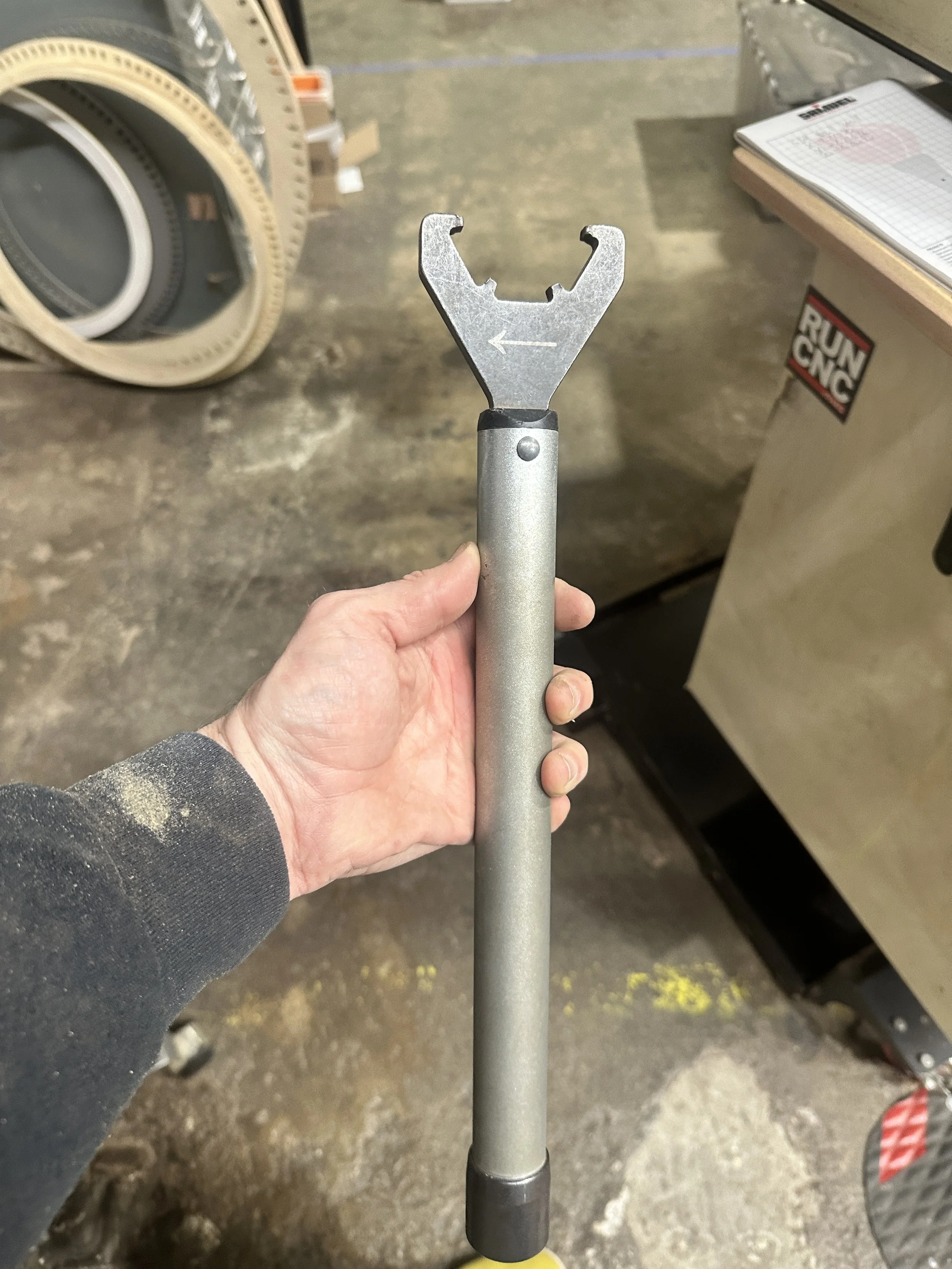

Machine includes tooling, tool holders, tool holder setting stand and wrenches.
Machine is under power and ready for inspection and test cuts. Fantastic machine!
